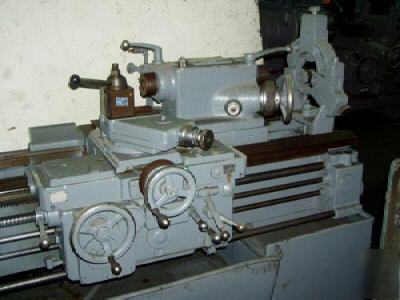

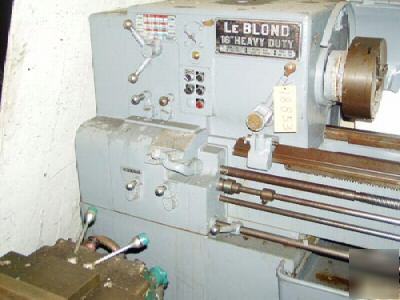

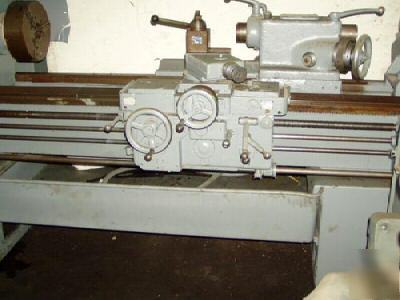

20"X54" leblond engine lathe, 16" heavy duty (18853)

UpUp


Subject: 20"X54" leblond engine lathe, 16" heavy duty (18853)
20" x 54" LEBLOND, 16" Heavy Duty, 16-2000 RPM, S.R., 20 HP, Low Price Our stock number: 18853 LeBlond Engine Lathe MODEL..................................16" Heavy Duty
LeBlond Engine Lathe SERIAL NUMBER..........................2NE724 Year: 1958
LeBlond Engine Lathe GENERAL SPECIFICATIONS
Swing Over Bed.........................20-1/4"
Swing Over Cross Slide.................13"
Distance Between Centers...............54"
Spindle Speeds.........................(27) 16 To 2000 RPM
Spindle Nose...........................L-1
Hole Through Spindle...................1-7/8"
Feed Changes...........................(109) .0011" to .205"
Thread Changes.........................(93) 2 to 120 TPI
Cross Slide Travel.....................10-3/4"
Tailstock Spindle Travel...............11"
Tailstock Spindle Taper................No. 4 MT
LeBlond Engine Lathe EQUIPPED WITH
LeBlond Engine Lathe Approximate Weight....................8000 Lbs.
