Subject: 2" sms model 200 hydr. rotary tube bender 190 degree

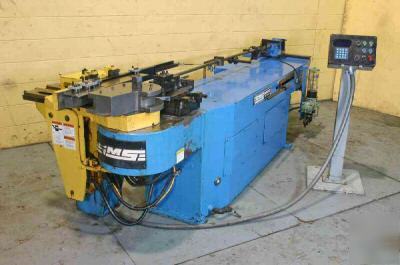

2" SMS MODEL 200 HYDRAULIC ROTARY TUBE BENDER
SERIAL .......................................... 98008
MODEL ........................................... 200
NEW ............................................. 1998
ROTATION ........................................ COUNTER CLOCKWISE
CAPACITY: STEEL PIPE (SCHEDULE 80) .............. 2"
CAPACITY: NON-FERROUS TUBE (Y.P. TO 25K PSI) .... 3" X .188"
CAPACITY: STEEL TUBE (Y.P. TO 40K PSI) .......... 3" X .109"
CAPACITY: STAINLESS TUBE (Y.P. TO 60K PSI) ...... 3" X .065"
CAPACITY: SQUARE TUBE (MILD STEEL) .............. 2-1/2" X .083"
CAPACITY: ROUND BAR (MILD STEEL) ................ 1-7/8"
CAPACITY: SQUARE BAR (MILD STEEL) ............... 1-11/16"
MAXIMUM RADIUS .................................. 12"
MAXIMUM TUBE LENGTH OVER MANDREL ................ 7'5"
DEGREE OF BEND .................................. 190 DEGREE
HYDRAULIC MANDREL EXTRACTOR ..................... YES
DIGITAL CONTROL A BEND .......................... YES
HYDRAULIC MOTOR, HORSEPOWER ..................... 10
