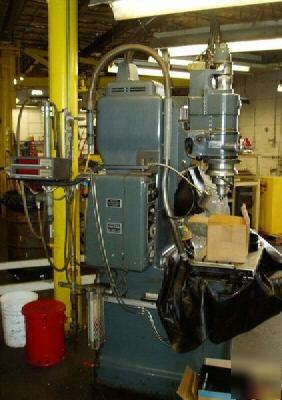

New 1956, Serial No. 7370, Model 2 Sony "Magnascale LF200" Digital Readouts Table Dimensions, L x W................ 19" x 10" Longitudinal Table Travel, (X-Axis).... 16.5" Cross Table Travel, (Y-Axis)........... 10.5" Spindle Slide Travel................... 3.625" Maximum Distance, Collet To Table...... 16" Minimum Distance, Collet To Table...... 0" Column Ways............................ 10" Column Below Ways...................... 12.5" (4) Spindle Speeds, Range.............. 90 to 240 RPM Grinding Wheel Speeds, Inf. Var........ 15000 to 40000 RPM Vertical Feed Rate, Inf. Var........... 2 to 120 SPM Grinding Capacity, Range............... 3/16" to 5" Floor Space............................ 4' x 4'11" Overall Height......................... 8'4" Weight Approximately................... 3150 LBS. NOTE: Machine Appears To Be In Very Good Condition. PRICE: F.O.B. OUR WAREHOUSE............ $14,500.00 All machines/equipment subject to prior sale. |
