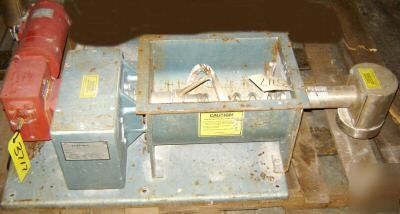

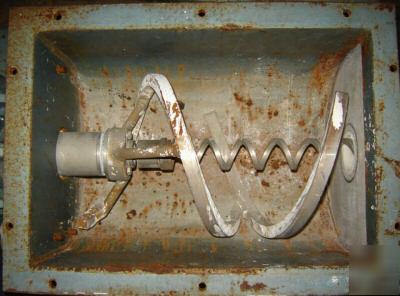

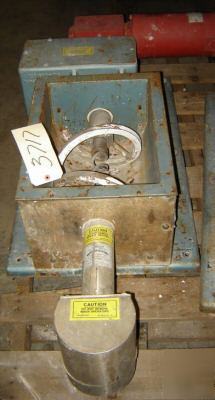

2 ACRISON STAINLESS STEEL SCREW FEEDER COMPLETE WITH 1 HP DC MOTOR. SPEED IS 1725 RPM WITH 90A/100F VOLTAGE, S/N BCD5GRC433. GEAR REDUCER IS ACRISON S/N-1091 WITH 30:1 RATIO, 1.68 INPUT HP, PART # 2070063HSS MODEL FHM01262-759666, CLASS 1 RATING 1750 RPM INPUT. GEAR REDUCER ALSO APPEARS TO HAVE TACHOMETER ATTACHED. SCREW FEEDER IS STAINLESS STEEL CONSTRUCTION WITH 2 DIAMETER WIRE COIL TYPE SCREW AND 10 OVERWRAP FOR BRIDGE BREAKING. INLET TROUGH IS 12 WIDE x 17 ½ LONG, SCREW PROTRUDES OUT PAST TROUGH APPROXIMATELY 15 TOTAL. CENTER LINE OF FEED TO CENTER LINE OF DISCHARGE IS APPROX 21. OVERALL HEIGHT OF FEEDER IS 15 INCHES. OVERALL DIMENSIONS ARE 20 WIDE X 52 LONG X 15 TALL. |
