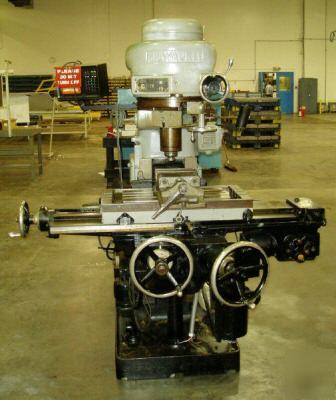

#2D KEARNEY & TRECKER "ROTARY-HEAD" VERTICAL MILL Anilam Mini-Wizard 2-Axis Digital Readouts 360-Degree Rotary Head (Power & Hand Feed) Power Feed to Table (Longitudinal) Table Dimensions (Overall), W x L...... 16" x 30" Table Longitudinal Travel (X-Axis)..... 18" Saddle Cross Travel (Y-Axis)........... 12" Knee Vertical Travel (Z-Axis).......... 18" Spindle Radial Adjustment.............. 0" to 4" Quill Vertical Travel.................. 3" Spindle Taper.......................... #30 NSTD Spindle Speeds, Range.................. 250 to 4000 RPM Longitudinal Table Feeds, Range........ .500 to 7.5 IPM Vertical Spindle Feeds, Range.......... .0002 to .008 IPR Rotary Head Feeds, Range............... .200 to 3 RPM Floor Space Required, W x D............ 5'7" x 5'3" Overall Height......................... 6'5" Weight, Approximately.................. 5000 LBS OPERATION: The Rotary Head Method of Milling Simplifies The Machining Process of Tools, Dies, Molds and Various Parts That Have Multiple Radii And Require Close Tolerances Using the Mechanically Accurate Movement of the Rotary Head. Work Can Be Laid Out Quickly and Accurately With the Same Dimensional Figures That are Used for the Layout, Can Also be Used for Actual Cutting Operations. PRICE: F.O.B. OUR WAREHOUSE........... $4,950.00 All machines/equipment subject to prior sale. |
