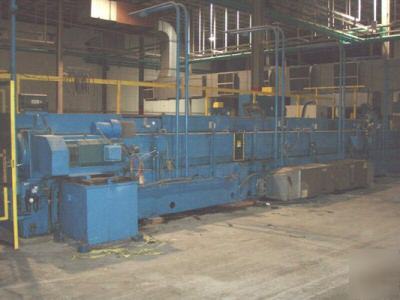

28 Stand Tishken Duplex Style Roll Forming Machine (M# 7732)
Model: #28-HW-AS-3, New: 1996
Number of Stands: 28 (On 30 Stand Base, 3 Bases Coupled Together)
Spindle Diameter: 3 (Solid shaft with movable slide on operatorôs side)
Roll Space (Adjustable): 26 - 36, Powered
Vertical Adjustment: 6 1/2 - 8 3/8
Double Wall Insulated Telescoping Type Hood with Lexan Viewing Ports
Micrometer Top Spindle Adjustment
Precision Ground, Heat-Treated Roll Spindles
75 HP Allen Bradley D.C. Variable Speed Drive
Approximate Weight: 80,000 Lbs.
Approximate Overall Dimensions: 480 L x 108 W x 84 H
Warranty & Leasing Options Available
