Subject: #271 heald "gagematic" internal grinder #24564

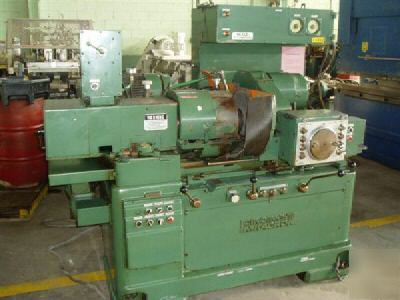

#271 HEALD "GAGEMATIC" INTERNAL GRINDER
New 1980, Serial No 48163, Model 271, Series
11000 RPM "Red-Head" Grinding Spindle
10" 3-Jaw Work Holding Fixture
Swing Over Table, Maximum................ 18"
Bore Diameter Ground, Maximum............ 5.5"
Bore Length Ground, Maximum.............. 5"
Table Longitudinal Travel................ 16"
Hole Thru Worhead Spindle, Diameter...... 1.59"
Grinding Angle, Maximum Included......... 60-DEGREES
Grinding Table Speeds, Infinite.......... 0 TO 20 FPM
Power Rapid Table Traverse............... 35 FPM
Grinding Spindle Motor, Horsepower....... 5 HP/3500 RPM
Electrical System........................ 220-440/3/60
Overall Dimensions, W x D................ 11' X 7'
Overall Height........................... 7'
Weight, Approximately.................... 8000 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $8,950.00
All machines/equipment subject to prior sale.
