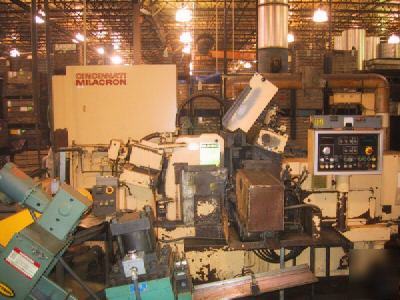

#220-8 CINCINNATI-MILACRON "RK" CENTERLESS GRINDER w/ONEFEED DMC PROGRAMMABLE GRINDING CONTROL New 1992, Serial No. 916322091-0109, Model 220-8, ONEfeed DMC Grinding Control For Infeed Or Thrufeed Servo-Driven Grinding Wheel Truing Servo-Driven Regulating Wheel Truing Epoxy Granite Base - Filmatic Wheel Bearings Barnes Magnetic Coolant Filtration System Diameter Capacity, Range................. 1/16" to 4.5" Grinding Wheel Diameter, Minimum......... 17" Grinding Wheel Diameter, Maximum......... 24" Grinding Wheel Width, Maximum............ 10" Grinding Wheel Hole Diameter............. 12" Regulating Wheel Diameter, Minimum....... 11" Regulating Wheel Diameter, Maximum....... 14" Regulating Wheel Width, Maximum.......... 10" Regulating Wheel Hole Diameter........... 6" Grinding Speed, Maximum Diameter Wheel... 8500 FPM Wheel Dressing Rates, Range.............. 0 to 50 IPM Grinding Wheel Motor, Horsepower......... 20 HP Weight Approximately..................... 22100 LBS CONDITION: Appears to be in Very Good Condition As NOTE: The ONEfeed Option Provides Operator Selectable Thrufeed Or Infeed Grinding Cycles On One Machine. Replacement Price Is Over $295,000.00. PRICE: F.O.B. OUR WAREHOUSE.............. $49,500.00 All machines/equipment subject to prior sale. |
