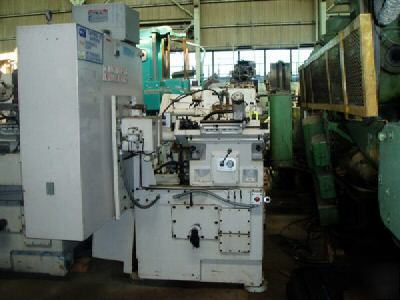

#220-8 CINCINNATI-MILACRON "CENTURAMIC" New 1980, Serial No 350300080-0036, Model 220-8, Dual Rate Electro-Hydraulic Infeed Outboard Support On Regulating Wheel Spindle Automatic Grinding Wheel Balancing Attachment Automatic Grinding Wheel Spindle Reciprocator Automatic Hydraulic Grinding Wheel Profile Truing Hydraulic Regulating Wheel Profile Truing Retrofitted DC Electric Servo On End Of Spindle Gibbed Upper & Lower Slide - Automatic Lubrication Diameter Capacity, Nominal............... 0" to 3" Diameter Capacity, Maximum............... 4.5" Grinding Wheel Diameter, Minimum......... 17" Grinding Wheel Width, Minimum............ 1" Grinding Wheel Hole Diameter............. 12" Regulating Wheel Diameter, Minimum....... 10" Regulating Wheel Diameter, Maximum....... 13" Regulating Wheel Width, Minimum.......... 1" Regulating Wheel Width, Maximum.......... 8" Regulating Wheel Hole Diameter........... 5" Regulating Wheel Speeds, Range........... 15 to 300 RPM Regulating Wheel Speeds, Low Range....... 15 to 56 RPM Regulating Wheel Speeds, High Range...... 56 to 300 RPM Grinding Wheel Motor, Horsepower......... 20 HP Regulating Wheel Motor, Horsepower....... 1.5 HP Weight, Approximately.................... 12400 LBS PRICE: F.O.B. OUR WAREHOUSE.............. $27,500.00 All machines/equipment subject to prior sale. |
