Subject: #20T pines vert compression hyd press bender 18245

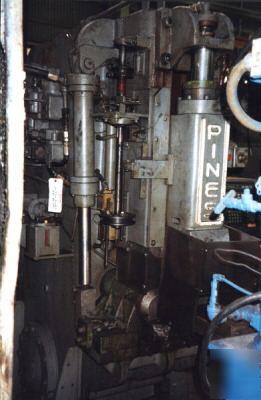

#20T PINES VERTICAL COMPRESSION HYDRAULIC PRESS BENDER
New 1954, Serial No 190-119, Model 20T,
Hydraulic Controlled Wing Dies
Tonnage Capacity, Ram................... 20 TON
Tube Size Range......................... 1/2" to 2"
Steel Tube Maximum, O.D. x Wall......... 2" x 0.083"
Centerline Radius, Minimum.............. 5"
Centerline Radius, Maximum.............. 10"
Bending Angle Degrees, Maximum.......... 165-DEGREES
Production Capacity, Bends per Hour..... 700 to 900 BPH
Motor, Horsepower....................... 20 HP
Overall Dimensions, W x D............... 3'4" x 7'1"
Overall Height.......................... 7'8"
Weight, Approximately................... 8500 LBS
NOTE: Being Sold As A Parts Machine.
PRICE: F.O.B. OUR WAREHOUSE............. $2,827.00
All machines/equipment subject to prior sale.
