176 ton lasco closed die hydraulic forging press, 1980

UpUp


Subject: 176 ton lasco closed die hydraulic forging press, 1980

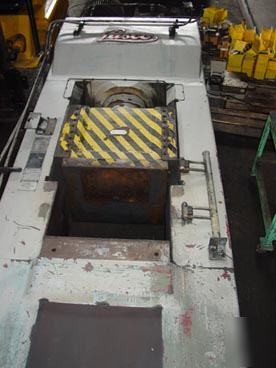

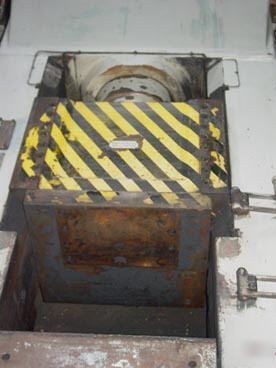

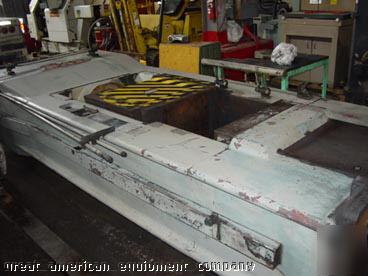

Please see info below and photos on a very nice 176 Ton Lasco Closed Die Hydraulic Forging Press. . It is only available because the company that had it did not have the work for it.
It is available to show to you in our Cincinnati, OH warehouse. I can shop and get you a freight rate if you want me to. Please call
Paul Trossman at w/ any questions or please email me at
176 TON LASCO HYDRAULIC FORGING PRESS
Model VPA 160, S/N 220-80-102, New 1980
Tie Rod Construction, Two Uptrights, Cast Iron Base, Cast Iron Crown, (2) Concealed 5" Diameter Tie Rods 40-1/2" Center to Center Rated at 280 Ton as Per Factory Specifications
NOTE: New Replacement Price is in Excess of $ 300,000.
Tonnage Capacity..................................... 176 Ton
Stroke Length........................................... 16"
Bed Size................................................... 27-5/8" x 30-5/8"
Ram Size................................................. 27-1/2" x 30-5/8"
Daylight w/o Bolsters.............................. 41-1/2"
Press Force............................................ 1600 KN
Return Force.......................................... 250 KN
Vertical Ways......................................... 3" x 41" High
Top Bolster Thickness........................... 3-1/2"
Bottom Bolster Thickness....................... 6"
Motor Horsepower.................................. 60 HP
Approximate Machine Dimensions........ 68" x 38"
Approximate Machine Height................ 199"
Approximate Machine Weight............... 37,000 Lbs.
CONDITION: Machine Appears to be in Excellent Condition !
