Subject: 16' energy management system restaurant hood package
This Energy management System automatically fluctuates the amount of air exhausted and supplied to the kitchen and saves you money in energy costs for years to come all while ensuring proper capture and containment of cooking vapors.
20% Reduction in Fan Speed equates to a 48% reduction in fan energy costs. Fully adjustable High and Low speed set points with the use of Variable Frequency Drives. Low initial up-front costs with quick payback period. Standard Exhaust on in Fire Situations. 100% Airflow Override button with fully adjustable timer. Low Maintenance '' Monthly Temperature Probe Cleaning Only. Installed in Exhaust Hood Utility Cabinet and can be Factory Wired
1- 5124EX - 16' 0" Long Compensating Wall Canopy Hood with a Front
Perforated Supply Plenum (PSP) Accessory. w/ 1 Factory installed 10 X 46" Exhaust Riser(s)
1- Fire Cabinet on Right of Hood
2- FILTER - 16"x 16" Kleen-Gard Aluminum Baffle Filter with Handles, UL Classified
8- FILTER - 16"x 20" Kleen-Gard Aluminum Baffle Filter with Handles, UL Classified
3- SUPPLY RISER - 8"x 36" Supply Riser with Volume Dampers
1- 1/2 Pint Grease Cup New Style, Flanged
1- Electrical Package Installation in Utility Cabinet by Plant.
1- ANSUL-3.0/3.0/3.0 Ansul 9 gallon Fire System in Utility Cabinet (includes pre-piped hood(s) with detection, tank(s), release mechanism, microswitches and pull station)
1- GAS VALVE - 2" Mechanical Shutoff Valve (Ansul)
1- BDU20 Belt Drive Centrifugal Upblast Exhaust Fan with 20.75" wheel
Exhaust Fan handles 4800 CFM @ 0.850" wc. Fan runs at 1051 RPM.
Exhaust Motor: 1.500 HP, 3 Phase 208 V, ODP, Inverter Duty (3 phase)
1- GREASE CUP - Grease Cup for kitchen-duty centrifugal exhaust fans.
1- 3 Year Extended Warranty for Fan Motor. Parts only; does not include labor.
1- NSA12 Supply Unit with 12" Blower in Size #2 Housing
Supply Fan handles 3840 CFM @ 0.376" wc. Fan runs at 747 RPM.
Supply Motor: 1.500 HP, 3 Phase 208 V, ODP (Open Drip Proof)
Down Discharge - Air Flow Right -> Left
1- Sloped Filtered Intake for Size #2 Standard Untempered Make-Up Air Unit with 12" blower wheel.
22" Wide x 29.25" Long x 31.5" High.
Includes 2" MV EZ Kleen Metal Mesh Filters.
1- 3 Year Extended Warranty for Fan Motor. Parts only; does not include labor.
1- Curb CRB26.5x20E On Fan # 1
1- Hinged Base for Curb. Hinge attached to curb.

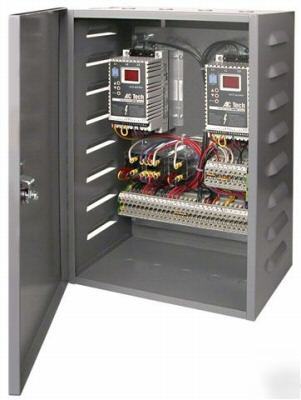

1- EMS11102 Energy Management System to Control One Exhaust Fan and One Supply Fan. Includes VFDs, Duct Temperature Switch and Override Control w/Exhaust on in Fire. Controls mounted in Utility Cabinet. INVERTER DUTY THREE PHASE MOTORS REQUIRED!
Please send your zip code for a freight quote.
