150 ton komatsu #SG2-150 gap frame press (#7215)

UpUp


Subject: 150 ton komatsu #SG2-150 gap frame press (#7215)

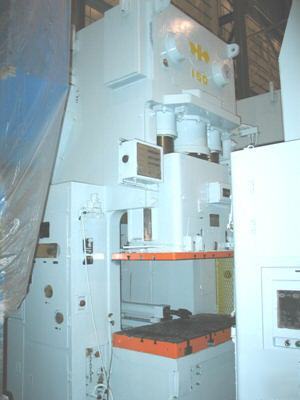

150 Ton Komatsu #SG2-150 2-Point Gap Frame Press (#7216)
Shut Height on Bed: 32.5'', (SDAU)
Slide Adjustment: 5'' (Powered)
Bed Area: 60''LR x 30''FB, (5.5'' T-Slotted Bolster)
Slide Area: 60''LR x 30''FB, T-Slotted
Frame Opening in Rear: 48'' Wide x 44'' High
Maximum Weight of Upper Die: 4.8 Tons
Combination Clutch & Brake (Wet-Type)
(2) Pneumatic Die Cushions: 6'' Stroke / 44.5''LR x 19.5''FB Pad Area / 18.2 Ton @ 70 PSI
Approximate Weight: 52,000 Lbs.
Approximate Dimensions: 95'' LR x 120'' FB x 164'' High
Inspect under power in our Detroit area warehouse.
Leasing is available. Ask our Sales Department for details.
Warranty and Leasing Options Available
