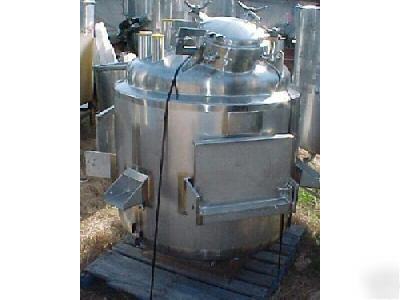

150 GAL PRECISION STAINLESS 316LSS SANITARY INSL MIX TANKS 1995 SN-8806-5 - POLISHED INTERIORS - SPRAYBALL\CIP CONNECTION - VESSEL IS RATED 14.9 PSI @ 250 DEGREES F - -20 F @ 14.9 PSI - LIFT LUGS - SHELL THICKNESS .135, HEAD THICKNESS .187 - 14" TOP MANWAY ROSEMONT SENSOR XP RATED FILL SHUT OFF - 2EA 4" TOP AIR ACTUATED SLIDE GATES BY SPRINGFIELD - HI-TORK MIXER W\ RELIANCE DRIVE MOTOR MOUNTED ON AN 8-BOLT SANITARY FLANGED OPENING - ELECTRICS .75 1750RPM\220-460V\3PH\60HZ DRIVING A 3\4" SHAFT W\4" 3-BLADE DUAL PROP MIXER - UNIT HAS MOUNTS FOR LOAD CELLS 3EA - OPENINGS: 4" TOP INLET, 4" CENTER BTM OUTLET -
|
