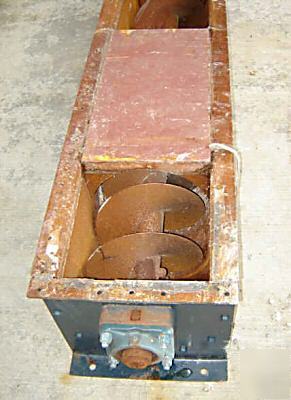

12" X 28''- 4" CARBON STEEL SCREW CONVEYOR: 12" DIAMETER SCREW X 28'-4" LONG. 3/16" THICK CARBON STEEL FLIGHTS ARE ON 12" CENTERS WITH FEED SECTION FLIGHTS ON 6'' CENTERS. OPEN TOP U-TROUGH DESIGN. 13" X 13" DISCHARGE ON DRIVE END. 2" SHAFTING. BALDOR 2 HP MOTOR. CATALOG NUMBER W3558T. SPECIFICATION 35A001T585H1. SER. M0500. FRAME 145T. 208-230/460 VOLTS. 6-5.6/2.8 AMPS. 1740 RPM. 60 Hz 3 PHASE WITH A SERVICE FACTOR OF 1.15. DODGE SHAFT MOUNT SPEED REDUCER. SIZE SCXT-125. PART NUMBER 351164MC 142. CLASS RATING 4.64 HP @ 2179 RPM AND A 25.64 RATIO. MAXIMUM INPUT SPEED 2179 RPM. DRIVE SECTION IS EQUIPPED WITH BELT DRIVE AND DRIVE GUARD. |
