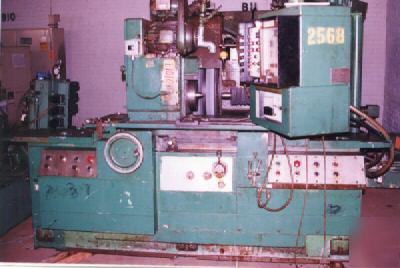

10" x 18" CINCINNATI-MILACRON #430EC 30-DEGREE ANGULAR PLUNGE GRINDER New 1971, Serial No 35432A95Y-0001, Model 430EC Swing Over Table, Maximum................ 10.9375" Grinding Diameter, Maximum............... 10" Distance Between Centers, Nominal........ 18" Work Length Capacity, Maximum............ 20" Grinding Wheel Diameter, Standard........ 36" Grinding Wheel Width, Standard........... 6" Grinding Wheel Hole Diameter............. 12" Table Swivel Taper....................... 3.79" TPF Table Swivel Angle, Clockwise............ 9-DEGREES Table Swivel Angle, Counterclockwise..... 3-DEGREES Grinding Wheel Speed..................... 830 RPM Headstock Speeds, Range.................. 34 to 245 RPM Infeed Rapid Approach, Side Movement..... 4" Infeed Stock Removal Amounts, Range...... 0 to 10" Grinding Wheelhead Spindle Motor......... 25 HP Electrical System........................ 220-440/3/60 Weight, Approximately.................... 20300 LBS CONDITION: Appears to be in Very Good Condition. PRICE: F.O.B. OUR WAREHOUSE............. $9,950.00 All machines/equipment subject to prior sale. |
