Subject: 1-2-3 goss & deleeuw 4-station hydr transfer mach 21028

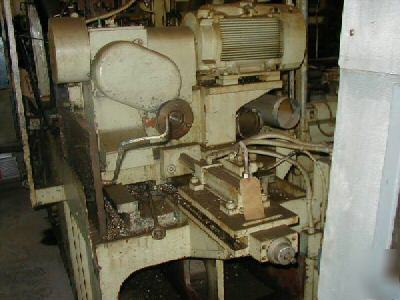

1-2-3 GOSS & DELEEUW 4-STATION HYDRAULIC
New 1977, Serial No 2662, Model 1-2-3,
4-Station Index With Curvic Coupling Turret
(1) Station Load-Unload Station
(2) Station Single Spindle Gear Driven Slide w/10 HP
(3) Station Special Single Spindle Gear Driven Facing
(4) Station Special Single Spindle Threading Slide
(Leadscrew Controlled) With 10 HP Hi-Slip Motor
Independent Feed Control For Slides 1 & 2
Hydraulic Cross Feed Head - Vickers Hydraulic System
Oil Cooler - Automatic Door Actuator
Superior-Detroit Slide Unit With 12" x 12" Platen And
24" Stroke With Square Lock Way Table
4-6-8 Spindle Drilling And Tapping Heads (12)
Automatic Lubrication System For Bedways & Slides
Number of Stations...................... 4-STATION
Drilling Capacity, Steel................ 1.5"
Boring Capacity, Steel.................. 3"
Tapping Capacity, NPT................... 2"
Spindle Centerline Slide................ 13.25"
Spindle Speeds, Threading Slides........ 23 to 132 RPM
Spindle Speeds, Drilling Slides......... 100 to 950 RPM
Spindle Motor, Horsepower............... 10 HP
Floor Space Required, W x D............. 7'2" x 10'
Weight, Approximately................... 17500 LBS
PRICE: F.O.B. OHIO (Cincinnati)......... $2,450.00
All machines/equipment subject to prior sale.
