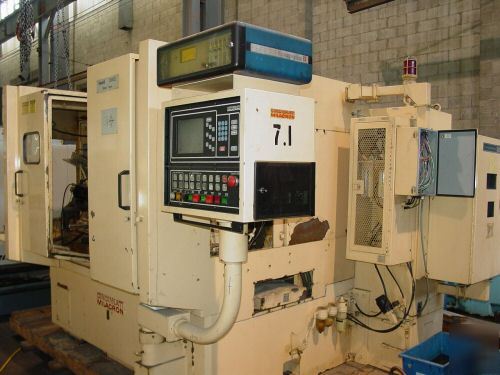

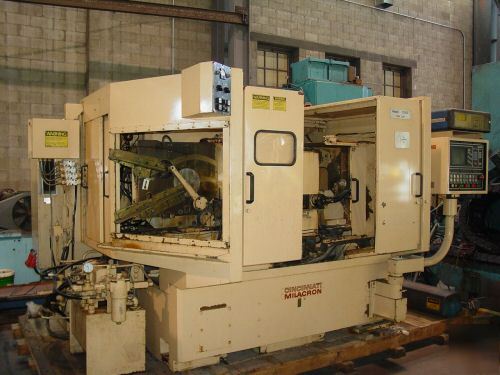

#1 CINCINNATI CINEX EXTERNAL MULTI-SURFACE CNC CHUCKING GRINDER Model 1 Cinex, New 1989, S/N 9121ODS88-0114 The Cincinnati CINEX is a Fully Enclosed CNC Grinder Designed to Provide High Volume Capacity and Reliable CNC Precision Grinding of the Outside Diameter of Simple or Complex Parts. The Acramatic 750G CNC Control Gives you Full Contouring Control of the Wheel Head. This Allows you to Grind Multiple Surfaces on the Same Part and Complex Shapes such as; Ball Tracks, Lands, Snap Angles, Contoured OD Surfaces, Tapered Roller Bearing Outers, Lips, Convex Self-Aligning Outers and Many More. Cincinnati Acramatic 750G CNC Control, Multiple Part Program Storage, Vibration Dampening Granite Epoxy Base, High Speed Dual Arm Hydraulic Parts Loader, Diamond Roll Form Dresser, Marposs Micromar 5 In-Process Dual Finger Gauging System, Workhead Angular Setting Device from 0-90 Degree Grinding, Baladyne II Automatic Wheel Balancing System, Variable Speed Workhead. CATALOGUE SPECIFICATIONS: OD Work Capacity with Dual Arm Loader.................. .5" - 4.5" OD Work Capactiy with Alternate Loader................. .5" - 10" Wheelslide Longitudinal Travel (X-Axis)................ 12" Wheelslide Cross Travel (Z-Axis)....................... 6" Maximum Wheel Diameter................................. 20" Workhead Speeds........................................ 30-2000 RPM Axis Feed Resolution................................... .0000125" Feed Rates............................................. 0 -.999 IPM Rapid Feed Traverse.................................... 400 IPM WheelHead Motor Horsepower............................. 25 HP Workhead Motor Horsepower.............................. 5 HP Electrics.............................................. 460/3/60 Approximate Machine Dimensions......................... 89" x 119" X 80" Finance Equipment For Your Business - Click Here Ph: Fax: Machinery, Tooling and Accessories used in manufacturing are usually exempt from sales tax in our state (Ohio). A sales tax exemption certificate will be required if you are a Ohio company. Equipment purchased for personal use is subject to sales tax if you are a Ohio resident. Refunds & Returns, 30 Day MDNA Guarantee The best way to contact us is via email () or via our toll-free number from anywhere in the US or Canada. From Outside the US & Canada call . Our FAX number is . We are in our office available to answer your calls and emails 9:30 AM to 5 PM Eastern Time Monday thru Friday. We sometimes work Saturdays as well, but no guarantees - call if you want to come here on a Saturday - there's a strong possibility we will be working. We are closed every Sunday and all National Holidays. Our average length of time to respond to emails is a few hours. However if an Item closes after 5:00 EST on a Friday you probably won't here from us until Monday. |
